Sydney Buses Fleet
This is a historic listing of bus models of State Transit, Sydney.
Mercedes Benz O305 Mk2 / PMC
Chassis Model: O305
Body Make: PMC
Body Model: GALVASTRESS
Total No: 488
STA Class: Mk2 2453:1 Door
Fleet Nos: 1966-2515
Seats: 43 Standing: 27
Total Capacity: 70
Placed in Traffic: 1978-80 as School Bus
GENERAL SPECIFICATION:
Length (mm)..........10670
Width (mm)..........2500
Height (mm)..........2955
Weight unladen Front (kg)..........2900 Apprx.
Weight unladen Rear (kg)..........5900 Apprx.
Weight laden Front (kg)..........6000
Weight laden Rear (kg)..........10000
Wheelbase (mm)..........5330
Overhang Front (mm)..........2290
Overhang Rear (mm)..........3050
Turning Circle Wall/Wall (mm)..........19300
Turning Circle Kerb/Kerb (mm)..........----
Door Opening Front (mm)..........1150
Door Opening Rear (mm)..........1150
Step height 1 Front/Rear (mm)..........360/360
Step height 2 Front/Rear (mm)..........210/260
Step height 3 Front/Rear (mm)..........200/170
Ceiling height Front/Rear (mm)..........2070/1810
Floorheight Entry (mm)..........770
Floorheiqht Centre Door (mm)..........790
BODY:
Construction..........Galvastress
Windows..........Sliding
BRAKES:
Type..........Air & Hydr. Retarder
Handbrake..........Spring
ELECTRICAL:
Alternator..........Bosch
Voltage (V)..........24
Amps (A)..........120
Interior lighting..........Fluorescent
Destination Equipment..........Mechanical
SUSPENSION:
Type..........Air Bellow
Size..........11R22.5
Tyre Press Front (kPa)..........760
Tyre Press Rear (kPa)..........660
Fitted with Kneeling..........No
Fitted With Suspension lift..........No
CAPACITIES (Itr):
Fuel..........250
Engine Oil..........24.5
Gearbox..........20
Differential..........7.5
Power steering..........8.5
Coolant..........55
ENGINE:
Type..........OM 407h
Position..........Rear Underfloor
Capacity (Itr)..........11412
No. Cylinders..........6
Compression Ratio..........16.5
Bore (mm)..........125
Stroke (mm)..........155
Max kW (DIN) at (RPM)..........147/2200
Max Torque (Nm) at (RPM)..........716/1400
Max Gov. speed (RPM)..........2200
Fuel Pump..........Bosch
Injectors..........Bosch
TRANSMISSION:
Type..........W3DO80/2.2R
lst with Torqueconverter..........5.95/13
lst Ratio/Roadspeed..........2.12/35
2nd Rafio/Roadspeed..........1.35/55
3rd Ratio/Roadspeed..........1/75
Reverse Ratio..........2.23
Rear Axle Type..........H07/8DL/10
Final Drive Ratio...........5.9
Mercedes Benz O305 Mk3 / PMC
Chassis Model: O305
Body Make: PMC
Body Model: GALVASTRESS
Total No: 179 STA Class: Mk3
Fleet Nos: 2516-2549 2580-2727
(2516; 2520; 2717: W/DRAWN)
Seats: 43 Standing: 27
Total Capacity: 70
Placed in Traffic: 1981-83
GENERAL SPECIFICATION:
Length (mm)..........10670
Width (mm)..........2500
Height (mm)..........2955
Weight unladen Front (kg)..........2950 Apprx.
Weight unladen Rear (kg)..........5950 Apprx.
Weight laden Front (kg)..........6000
Weight laden Rear (kg)..........10000
Wheelbase (mm)..........5330
Overhcing Front (mm)..........2290
Overhang Rear (mm)..........3050
Turning Circle Wall/Wall (mm)..........19300
Turning Circle Kerb/Kerb (mm)..........---
Door Opening Front (mm)..........1150
Door Opening Rear (mm)..........1150
Step height 1 Front/Rear (mm)..........370/330
Step height 2 Front/Rear (mm)..........210/250
Step height 3 Front/Rear (mm)..........195/180
Ceiling height Front/Rear (mm)..........2130/1860
Floorheight Entry (mm)..........775
Floorheight Centre Door (mm)..........760
BODY:
Construction..........Galvastress
Windows..........Sliding
BRAKES:
Type..........Air & Hydr. Retarder
Handbrake..........Spring
ELECTRICAL:
Alternator..........Bosch
Voltage (V)..........24
Amps (A)..........120
Interior lighting..........Fluorescent
Destination Equipment..........Mechanical
SUSPENSION:
Type..........Air Bellows
Tyre Size..........11R22.5
Tyre Press Front (kPa)..........760
Tyre Press Rear (kPa)..........660
Fitted with Kneeling..........No
Fitted with Suspension lift..........No
CAPACITIES (Itr):
Fuel..........250
Engine Oil..........24.5
Gearbox..........20
Differential..........7.5
Power steering..........8.5
Coolant..........55
ENGINE:
Type..........OM 407 h
Position..........Rear Underfloor
Capacity (Itr)..........11412
No. Cylinders..........6
Compression Ratio..........16.5
Bore (mm)..........125
Stroke (mm)..........155
Max kW (DIN) at (RPM)..........147/2200
Max Torque (Nm) at (RPM)..........716/1400
Max Gov. speed (RPM)..........2200
Fuel Pump..........Bosch
Injectors..........Bosch
TRANSMISSION:
Type..........W3DO8012.2R
1 st with Torqueconverter.......... 5.95/13
lst Ratio/Roadspeed..........2.12/35
2nd Ratio/Roadspeed..........1.35/55
3rd Ratio/Roadspeed..........1/75
Reverse Ratio..........2.23
Rear Axle Type..........H07/8DL/10
Final Drive Raflo..........5.9

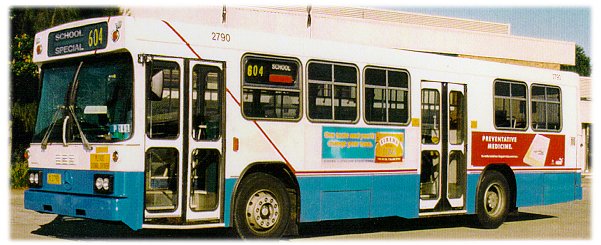

Mercedes Benz O305 Mk4 / PMC
Chassis Model: 0305
Body Make: PMC
Body Model: GALVASTRESS
Total No: 353 STA Class: Mk4
Fleet Nos: 2728-3070:
3072-3080: 3082
Seats: 43 Standing: 27
Total Capacity:70
Placed in Traffic: 1984-87
1 Door Semi-Coach
Chassis Model: 0305
Body Make: PMC
Body Model: GALVASTRESS
Total No: 1 STA Class: Mk4
Fleet Nos: 3081
Seats: 47 Standing: --
Total Capacity: 47
Placed in Traffic: 1987
GENERAL SPECIFICATION:
Length (mm)..........10750
Width (mm)..........2500
Height (mm)..........3050
Weight unladen Front (kg)..........2950
Weight unladen Rear (kg)..........5950
Weight laden Front (kg)..........6000
Weight laden Rear (kg)..........10000
Wheelbase (mm)..........5330
Overhang Front (mm)..........2370
Overhang Rear (mm)..........3050
Turning Circle Wall/Wall (mm)..........19300
Turning Circle Kerb/Kerb (mm)..........---
Door Opening Front (mm)..........1150
Door Opening Rear (mm)..........1150
Step height 1 Front/Rear (mm)..........350/340
Step height 2 Front/Rear (mm)..........225/250
Step height 3 Front/Rear (mm)..........180/180
Ceiling height Front/Rear (mm)..........2130/1860
Floorheight Entry (mm)..........750
Floorheight Centre Door (mm)..........770
BODY:
Construction..........Galvastress
Windows..........Sliding
BRAKES:
Type..........Air & Hydr. Retarder
Handbrake..........Spring
ELECTRICAL:
Alternator..........Bosch
Voltage (V)..........24
Amps (A)..........120
Interior lighting..........Fluorescent
Destination Equipment..........Mechanical
SUSPENSION:
Type..........Air Bellows
Tyre Size..........11R22.5
Tyre Press Front (kPa)..........760
Tyre Press Rear (kPa)..........660
Fitted with Kneeling..........No
Fitted \With Suspension lift..........No
CAPACITIES (ltr):
Fuel..........250
Engine Oil..........24.5
Gearbox..........20
Differential..........7.5
Power steering..........8.5
Coolant ..........55
ENGINE:
Type..........OM 407 h
Position..........Rear Underfloor
Capacity (ltr)..........11412
No. Cylinders..........6
Compression Ratio..........16.5
Bore (mm)..........125
Stroke (mm)..........155
Max kW (DIN) at (RPM)..........147/220
Max Torque (Nm) at (RPM)..........716/1400
Max Gov. speed (RPM)..........2200
Fuel Pump..........Bosch
Injectors..........Bosch
TRANSMISSION:
Type..........W3DO80/2.2R
lst with Torqueconverter..........5.95/13
lst Ratio/Roadspeed..........2.12/35
2nd Ratio/Roadspeed..........1.35/55
3rd Ratio/Roadspeed..........1/75
Reverse Ratio..........2.23
Rear Axle Type..........H07/8DL/10
Final Drive Ratio..........5.9
Mercedes Benz O405 Mk5 / PMC
Chassis Model: 0405
Body Make: PMC
Body Model: GALVASTRESS
Total No: 229
STA Class: Mk5
Fleet Nos: 3083-3250;
3305-3380; 3071:
Seats: 43 Standing: 27
Total Capacity: 70
Placed in Traffic: 1987-90
1 Door Semi-Coach
Chassis Model: 0405
Body Make: PMC
Body Model: GALVASTRESS
Total No: 6
STA Class: Mk5
Fleet Nos: 3083;3112;3113
3134;3143;3237:
Seats: 47/49 Standing: ---
Total Capacity: 47/49
Placed in Traffic: 1988-89
2 Door Semi-Coach
Chassis Model: 0405
Body Make: PMC
Body Model: GALVASTRESS
Total No: 4
STA Class: Mk5
Fleet Nos: 3238;3241-3243:
Seats: 43 Standing: 27/0
Total Capacity: 70/43
Placed in Traffic: 1987-89

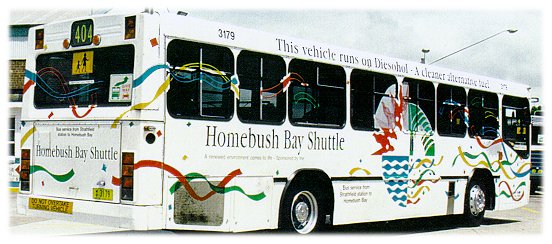

Diesohol Bus
Chassis Model: 0405
Body Make: PMC
Body Model: GALVASTRESS
Total No: 4
STA Class: Mk5
Fleet Nos: 3179-3182:
Seats: 43 Standing: 27
Total Capacity: 70
Placed in Traffic: 1988-89

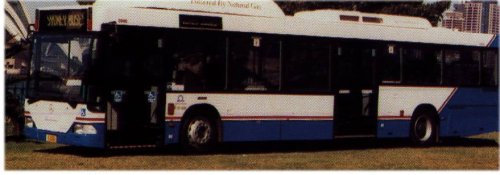

CNG Bus
Chassis Model: 0405 (CNG)
Body Make: PMC
Body Model: GALVASTRESS
Total No: 2
STA Class: Mk5
Fleet Nos: 3251;3252
Seats: 43 Standing: 27
Total Capacity: 70
Placed in Traffic: 1989

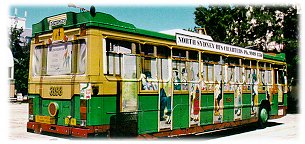

Tram Bus Chassis Model: 0405 Body Make: PMC Body Model: GALVASTRESS Total No: 1 STA Class: Mk5 Fleet Nos: 3198: Seats: 43 Standing: 27 Total Capacity: 70 Placed in Traffic: 1988
GENERAL SPECIFICATION:
Length (mm)..........11103
Width (mm)..........2500
Height (mm)..........3050
weight unladen Front (kg)..........3100 Apprx.
weight unladen Rear (kg)..........6200 Apprx.
weight laden Front (kg)..........6000
weight laden Rear (kg)..........10000
wheelbase (mm)..........5333
Overhang Front (mm)..........2610
Overhang Rear (mm)..........3160
Turning Circle Wall/Wall (mm)..........19300
Turning Circle Kerb/Kerb (mm)..........----
Door Opening Front (mm)..........1150
Door Opening Rear (mm)..........1150
Step height 1 Front/Rear (mm)..........370/340
Step height 2 Front/Rear (mm)..........220/240
Step height 3 Front/Rear (mm)..........200/210
Ceiling height Front/Rear (mm)..........2120/1860
Floorheight Entry (mm)..........790
Floorheight Centre Door (mm)..........790
BODY:
Construction..........Galvastress
Windows..........Sliding
BRAKES:
Type..........Air & Hydr. Retarder
Handbrcike..........Spring
ELECTRICAL:
Alternator..........Bosch
Voltage (V)..........24
Amps (A)..........120
Interior lighting..........Fluorescent
Destination Equipment..........Mechanical
SUSPENSION:
Type..........Air Bellows
Tyre Size..........11R22.5
Tyre Press Front (kpa)..........760
Tyre Press Rear (kPa)..........660
Fitted with Kneeling..........No
Fitted Wth Suspension lift..........No
CAPACITIES (Itr):v
Fuel..........240
Engine Oil..........24.5
Gearbox..........26.5
Differential..........7.5
Power steering..........8.5
Coolant..........76
ENGINE:
Type..........OM 447 h
Position..........Rear Underfloor
Capacity (ltr)..........11967
No. Cylinders..........6
Compression Ratio..........16.5
Bore (mm)..........128
Stroke (mm)..........155
Max kW (DIN) at (RPM)..........157/184/2200
Max Torque (Nm) at (RPM)..........805/890/1250
Max Gov. speed (RPM)..........2200
Fuel Pump..........Bosch
Injectors..........Bosch
TRANSMISSION:
Type..........W3E112/2.2R
1st with Torqueconverter..........5.95/14
lst Ratio/Roadspeed..........2.12/40
2nd Ratio/Roadspeed..........1.35/63
3rd Ratio/Roadspeed..........1/85
Reverse Ratio..........2.23
Rear Axle Type..........H07/9DL/10
Final Drive Ratio..........5.2
ENGINE(CNG):
Type..........M447hG
Position..........Rear underfloor
Capacity (Itr)..........11967
No. Cylinders..........6
Compression Ratio..........12.5
Bore (mm)..........128
Stroke (mm)..........155
Max kW (DIN) at (RPM)..........150/2200
Max Torque (Nm) at (RPM)..........810/1000
Max Gov. speed (RPM)..........2200
Gas Mixer..........lmpco 200 D-5
Type of Ignition..........Transistorized Coil
TRANSMISSION(CNG):
Type..........ZF 5HP500
1st Ratio/Roadspeed..........3.43/25
2nd Ratio/Rocidspeed..........2.01/42
3rd Ratio/Roadspeed..........1.42/60
4th Ratio/Roadspeed..........1/85
5th Ratio/Rocidspeed..........0.83/102
Reverse Ratio -
Rear Axle Type..........H07-9DL-10
Final Drive Ratio..........5.2

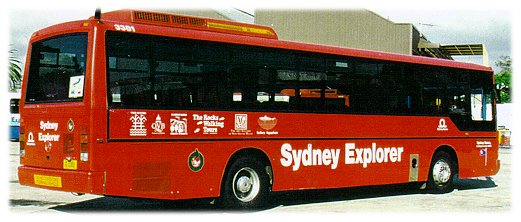

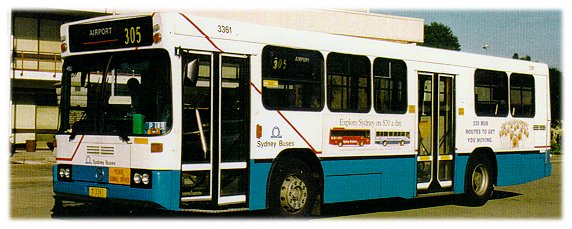

Mercedes Benz O405 Mk6 / PMC
Coach
Chassis Model: 0405
Body Make: PMC
Body Model: PMC 160 2D Coach
Total No: 2
STA Class: Mk6
Fleet Nos: 3381-3382:
Seats: 43 Standing: --
Total Capacity: 43
Placed in Traffic: 1990
Airport Bus
Chassis Model: 0405
Body Make: PMC
Body Model: PMC 160 Bus
Total No: 4
STA Class: Mk6
Fleet Nos: 3383-3386:
Seats: 41 + Lugg Standing: 34
Total Capacity: 75 + Lugg
Placed in Traffic: 1990

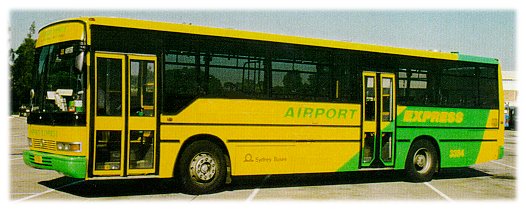

Airport Express Bus
Chassis Model: 0405
Body Make: PMC
Body Model: PMC 160 Bus
Total No: 7
STA Class: Mk6
Fleet Nos: 3387-3393:
Seats: 41 + Lugg Standing: 25
Total Capacity: 66 + Lugg
Placed in Traffic: 1990

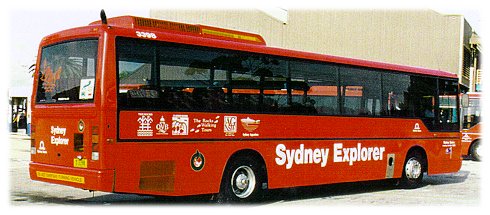

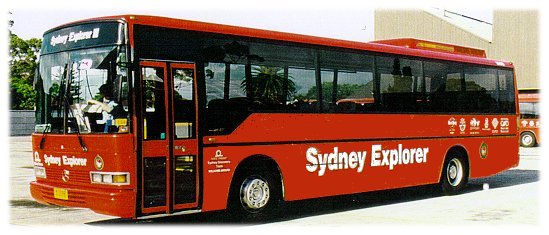

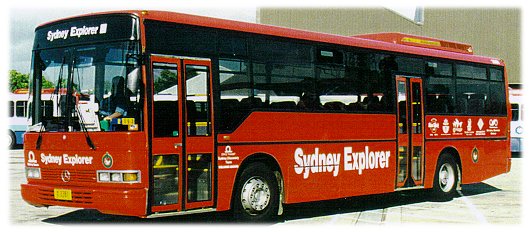

Explorer
Chassis Model: 0405
Body Make: PMC
Body Model: PMC 160 Bus
Total No: 5
STA Class: Mk6
Fleet Nos: 3394-3398:
Seats: 49 Standing: 0
Total Capacity: 49
Placed in Traffic: 1990-91
GENERAL SPECIFICATION:
Length (mm)..........11700
Width (mm)..........2500
Height (mm)..........3155/3345 (A/C)
Weight unladen Front (kg)..........3300 Apprx.
Weight unladen Rear (kg)..........6300 Apprx.
Weight laden Front (kg)..........6000
Weight laden Rear (kg)..........10000
Wheelbase (mm)..........5875
Overhang Front (mm)..........2670
Overhang Rear (mm)..........3155
Turning Circle Wall/Wall (mm)..........21300
Turning Circle Kerb/Kerb (mm)..........---
Door Opening Front (mm)..........1080
Door Opening Rear (mm)..........940
Step height 1 Front/Rear (mm)..........380/370
Step height 2 Front/Rear (mm)..........210/210
Step height 3 Front/Rear (mm)..........195/190
Ceiling height Front/Rear (mm)..........2300/2050
Floorheight Entry (mm)..........785
Floorheiqht Centre Door (mm)..........770
BODY:
Construction..........PMC 160
Windows..........Fixed
Saloon Ventilation..........Airconditioned
BRAKES:
Type..........Air & Hydr. Retarder
Handbrake..........Springv
ELECTRICAL:
Alternator..........Bosch
Voltage (V)..........24
Amps (A)..........120
Interior lighting..........Fluorescent
Destination Equipment..........None
SUSPENSION:
Type..........Air Bellow
Tyre Size..........11R22.5v
Tyre Press Front (kPa)..........760
Tyre Press Rear (kPa)..........660
Fitted with Kneeling..........Yes
Fitted with Suspension lift..........No
CAPACITIES (ltr):
Fuel..........240
Engine Oil..........24.5
Gearbox..........26.5
Differential..........7.5
Power steering..........8.5
Coolant..........76
ENGINE:
Type..........OM 447 hv
Position..........Rear Underfloor
Capacity (itr)..........11.967
No. Cylinders..........6
Compression Ratio..........16.5
Bore (mm)..........128
Stroke (mm)..........155
Max kW (DIN) at (RPM)..........184/2200
Max Torque (Nm) at (RPM)..........890/1300
Max Gov. speed (RPM)..........2200
Fuel Pump..........Bosch
Injectors..........Bosch
TRANSMISSION:
Type..........W3E110/2.2R
lst Wth Torqueconverter..........5.95116
lst Ratio/Roadspeed..........2.12146
2nd Ratio/Roadspeed..........1.35171
3rd Ratio/Roadspeed..........1/97
Reverse Ratio..........2.23
Rear Axle Type..........H07-9DL-10
Final Drive Ratio..........4.57

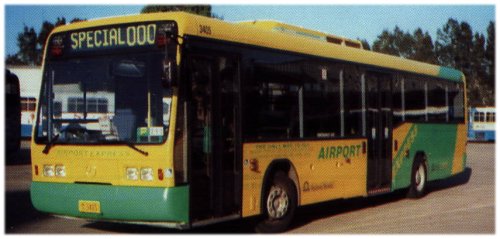

Mercedes Benz O405N / Orana
low floor Airport Bus (ML1)
Chassis Make: Mercedes Benz
Chassis Model: 0405N
Body Model: ORANA
Seats: 32
Standing: 28
Total Capacity: 60
Total No: 2
STA Class: ML1
Placed in Traffic: 1997
Fleet Nos.: 3405-3406
GENERAL SPECIFICATION:
Length (mm) 11995
Width (mm) 2500
Height (mm) 3135
Weight unladen Front (kg) 3220
Weight unladen Rear (kg) 7440
Weight laden Front (kg) -
Weight laden Rear (kg) -
Wheelbase (mm) 5875
Overhang Front (mm) 2620
Overhang Rear (mm) 3500
Turning Circle Wall/Wall (mm) -
Turning Circle Kerb/Kerb (mm) -
Door Opening Front (mm) 1250
Door Opening Rear (mm) 1150
Step height 1 Front/Rear (mm) 340
Step height 2 Front/Rear (mm) 340
Step height 3 Front/Rear (mm) -
Ceiling height Front/Rear (mm) 2474/2073
Floorheight Entry (mm) 370
Floorheight Centre Door (mm) 370
BODY:
Construction Steel Tube
Windows Fixed
Saloon Ventilation Airconditioned
BRAKES:
Type Air & Hydr. Retarder
Handbrake Spring
ELECTRICAL:
Alternator Bosch
Voltage (V) 24
Amps (A) 140
Interior lighting Fluorescent
Destination Equipment Stone McColl
SUSPENSION:
Type Air Bellows ECAS
Tyre Size 275/70 R22.5
Tyre Press Front (kPa) 760
Tyre Press Rear (kPa) 660v
Fitted with Kneeling Yes
Fitted with Suspension lift No
CAPACITIES (ltr):
Fuel 270
Engine Oil 24.5
Gearbox 16v
Differential 7.5+Hubs@2.75each
Power steering 8.5
Coolant 8.4
Mercedes Benz 0405NH / CITARO
Chassis Make: Mercedes Benz
Chassis Model: 0405NH
Seats: 44
Standing: 22
Total Capacity: 66
Body Make: Custom Coaches
Body Model: CITARO
Total No: 300
STA Class: ML2
Fleet Nos.: 1100-1405
Placed in Traffic: 1999-2000
GENERAL SPECIFICATION:
Length (mm) 12500
Width (mm) 2500
Height (mm) 3300 approx.
Weight unladen Front (kg) 3699
Weight unladen Rear (kg) 7103
Weight laden Front (kg) 5359
Weight laden Rear (kg) 9993
Wheelbase (mm) 6700
Overhang Front (mm) 2560
Overhang Rear (mm) 3200
Turning Circle Wall/Wall (mm) 24340
Turning Circle Kerb/Kerb (mm) 20690
Door Opening Front (mm) 1200
Door Opening Rear (mm) 1200
Step height 1 Front/Rear (mm) 320
Step height 2 Front/Rear (mm) N/A
Step height 3 Front/Rear (mm) N/A
Ceiling height Front/Rear (mm) 2395/?
Chassis approach angle 7.75 deg
Chassis departure anle 8.17 deg
BODY:
Construction Steel Tube
Windows Fixed
Saloon Ventilation Airconditioned
BRAKES:
Type Air & Hydr. Retarder
Handbrake Spring
ELECTRICAL:
Alternator
Voltage (V) 24
Amps (A)
Interior lighting Fluorescent
Destination Equipment Mobitec
SUSPENSION:
Type Air Bellows
Tyre Size 275/70R22.5
Tyre Press Front (kPa) 760
Tyre Press Rear (kPa) 660
Fitted with Kneeling Yes
Fitted with Suspension lift Yes
CAPACITIES (ltr):
Fuel 960 (water capacity) CNG
Engine Oil 20.5-24.5
Gearbox 16
Differential 7.5, (2.75 for hub)
Power steering 7.5
Coolant 75
ENGINE:
Type M 447hG
Position Rear underfloor
Capacity (ltr) 11.967
No. Cylinders 6
Compression Ratio 12.5 : 1
Bore (mm) 128
Stroke (mm) 155
Max kW (DIN) at (RPM) 175/2200
Max Torque (Nm) at (RPM) 880/1000
Max Gov. speed (RPM) 2200
Ignition system Deltec
Speed Limiter Yes
*TRANSMISSION:
Type ZF-5HP600
1 st Ratio/Roadspeed 3.43/24
2nd Ratio/Roadspeed 2.01/41
3rd Ratio/Roadspeed 1.42/58
4th Ratio/Roadspeed 1.00/82
5th Ratio/Roadspeed 0.83/99
Reverse Ratio 4.84:1
Rear Axle Type OH7/9DL-10 Hub Red.
Final Drive Ratio 4.86:1
Max speed with speed lim 80 kph

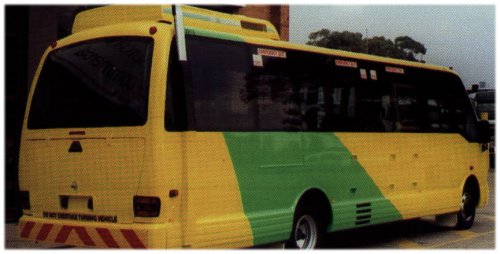

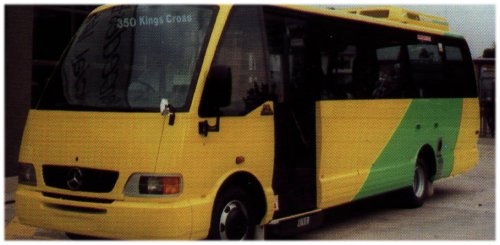

Mercedes Benz 814D / Vario
midi Airport Bus (MV)
Chassis Make: Mercedes Benz
Chassis Model: 814D
Seats: 29
Standing: 17
Total Capacity: 46
Body Make: Allan B Denning
Body Model: Vario
Total No: 11
STA Class: MV
Fleet Nos.: 3972-3982
Placed in Traffic: 1997-1998
GENERAL SPECIFICATION:
Length (mm)..........8710
Width (mm)..........2330
Height (mm)..........3050
Weight unladen Front (kg)..........2360
Weight unladen Rear (kg)..........3480
Weight laden Front (kg)..........-
Weight laden Rear (kg)..........-
Wheelbase (mm)..........4800
Overhang Front (mm)..........1190
Overhang Rear (mm)..........2720
Turning Circle Wall/Wall (mm)..........-
Turning Circle Kerb/Kerb (mm)..........-
Door Opening Front (mm)..........900
Door Opening Rear (mm)..........-
Step height 1 Front/Rear (mm)..........330
Step height 2 Front/Rear (mm)..........230
Step height 3 Front/Rear (mm)..........230
Ceiling height Front/Rear (mm)..........1880
Floorheight Entry (mm)..........790
Floorheight Centre Door (mm)..........-
BODY:
Construction..........Steel Tube/GRP
Windows..........Fixed
Saloon Ventilation..........Airconditioned
BRAKES:
Type..........Hydr.with air assist.
Electric Retarder..........TELMA
Handbrake..........Spring
ELECTRICAL:
Alternator..........Bosch 80
Voltage (V)..........24
Amps (A)..........80
Interior lighting..........-
Destination Equipment..........-
SUSPENSION:
Type..........F.p'bolic/R.air susp.
Tyre Size..........215/75R17.5
Tyre Press Front (kPa)..........500
Tyre Press Rear (kPa)..........600
Fitted with Kneeling..........-
Fitted with Suspension lift..........-
CAPACITIES (ltr):
Fuel..........140
Engine Oil..........10.5
Gearbox..........19.0
Differential..........3.75
Power steering..........1.6
Coolant..........13.5
ENGINE:
Type..........OM364LA
Position..........Rear vertical in line
Capacity (ltr)..........3,972
No. Cylinders..........4
Compression Ratio..........17:1
Bore (mm)..........97.5
Stroke (mm)..........133
Max kW (DIN) at (RPM)..........100@2600
Max Torque (Nm) at (RPM)..........428@1300-1800
Max Gov. speed (RPM)..........2600
Fuel Pump & Injectors..........Bosch
Speed Limiter..........VDO where fitted
Electronic Diesel Control..........N/A
TRANSMISSION:
Type..........Allison AT542
1st Ratio/Roadspeed..........3.45
2nd Ratio/Roadspeed..........2.25
3rd Ratio/Roadspeed..........1.40
4th Ratio/Roadspeed..........1.00
5th Ratio/Roadspeed..........-
Reverse Ratio..........5.025
Rear Axle Type..........HL 2 / 15-5.8
Final Drive Ratio..........3.63
Max speed with speed lim..........100
Renault PR100-2 / PMC
Chassis Model: PR100-2
Body Make: PMC
Body Model: GALVASTRESS
Total No: 2
STA Class: REN
Fleet Nos: 3303;3304:
Seats: 43 Standing: 27
Total Capacity: 70
Placed in Traffic: 1989
GENERAL SPECIFICATION:
Length (mm)..........11103
Width (mm)..........2500
Height (mm)..........3050
Weight unladen Front (kg)..........3350 Apprx.
Weight unladen Rear (kg)..........6350 Apprx.
Weight laden Front (kg)..........6000
Weight laden Rear (kg)..........10000
Wheelbase (mm)..........5333
Overhang Front (mm)..........2610
Overhang Rear (mm)..........3160
Turning Circle Wall/Wall (mm)..........20300
Turning Circle Kerb/Kerb (mm)..........---
Door Opening Front (mm)..........1150
Door Opening Rear (mm)..........1150
Step height 1 Front/Rear (mm)..........370/340
Step height 2 Front/Rear (mm)..........180/240
Step height 3 Front/Rear (mm)..........160/180
Ceiling height Front/Rear (mm)..........2200/1950-1640
Floorheight Entry (mm)..........710
Floorheight Centre Door (mm)..........760
BODY:v
Construction..........Galvastress
Windows..........Sliding
BRAKES:
Type..........Full Air
Handbrake..........Air Mechanical Lock
ELECTRICAL:
Altemator..........Lucas..........AC 172 R
Voltage (V)..........24
Amps (A)..........120
Interior lighting..........Fluorescent
Destination Equipment..........Mechanical
SUSPENSION:
Type..........AIR LAM
Tyre Size..........11R22.5
Tyre Press Front (kPa)..........760
Tyre Press Rear (kPa)..........660v
Fitted with Kneeling..........NO
Fitted with Suspension lift..........NO
CAPACITIES (ltr):
Fuel..........200
Engine Oil..........25
Gearbox..........30
Differenfial..........11.1
Power steering..........8
Coolant..........65
ENGINE:..........Renault MIPRO6.20,45
Type..........lnline Turboch. dir.inj
Position..........Rear inclined
Capacity (ltr)..........9.84
No. Cylinders..........6
Compression Ratio..........16.3:1
Bore (mm)..........120
Stroke (mm)..........145
Max kW (DIN) at (RPM)..........186@2100
Max Torque (Nm) at (RPM)..........1000@1350
Max Gov. speed (RPM)..........2100
Fuel Pump..........Bosch..........PES6P120A320
Injectors..........Bosch..........DLLA1545970
TRANSMISSION:
Type..........VOITH..........863
1st Ratio/Roadspeed..........N/A
2nd Ratio/Roadspeed..........54.6
3rd Ratio/Roadspeed..........78.7
4th Ratio/Roadspeed..........---
5th Ratio/Roadspeed..........---
Reverse Ratio At Stall..........4.7:1
Rear Axle Type ..........Renault..........PX1021 Hub Red.
Final Drive Ratic Total..........5.125:1
